Description
AVATR 12 Color

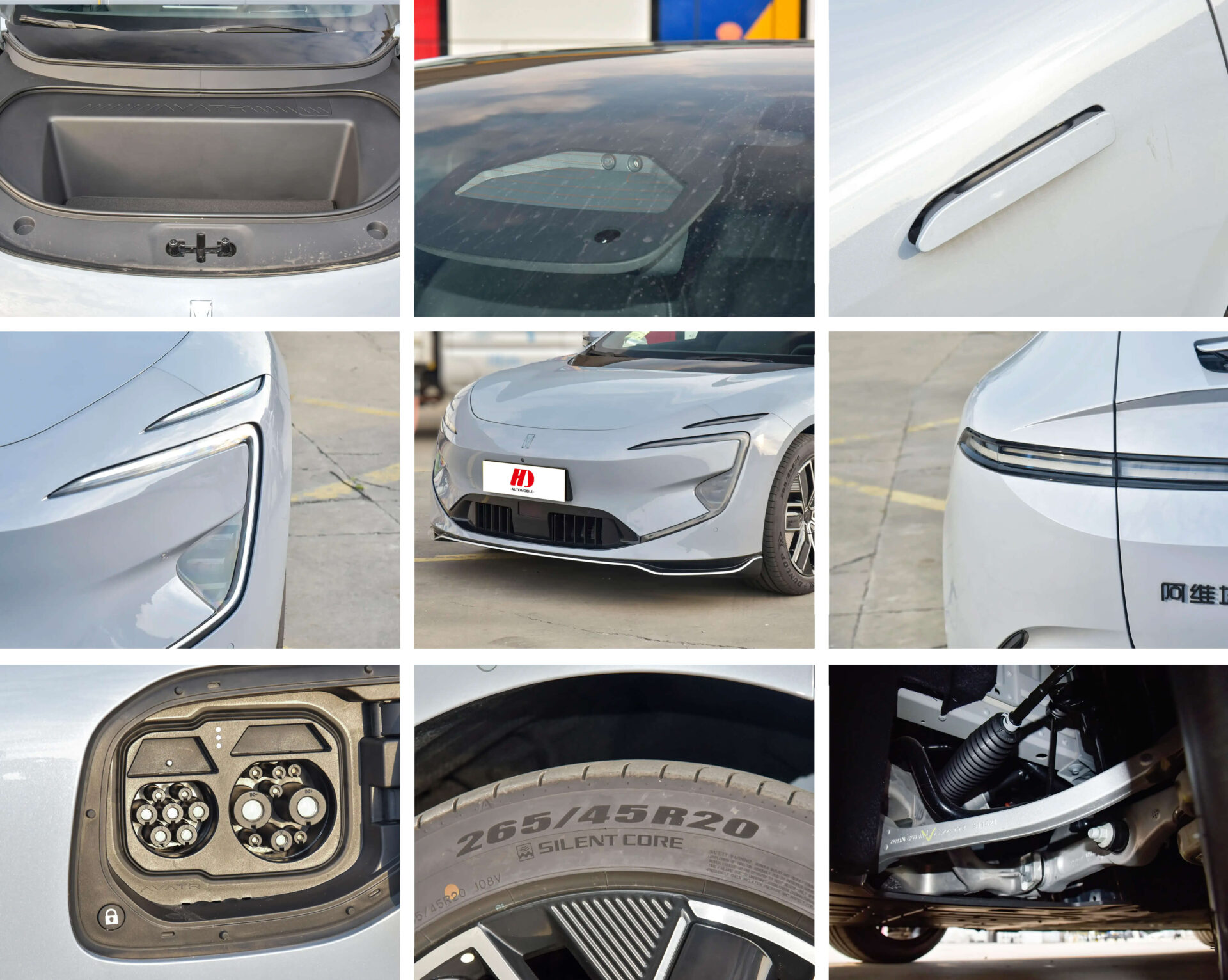

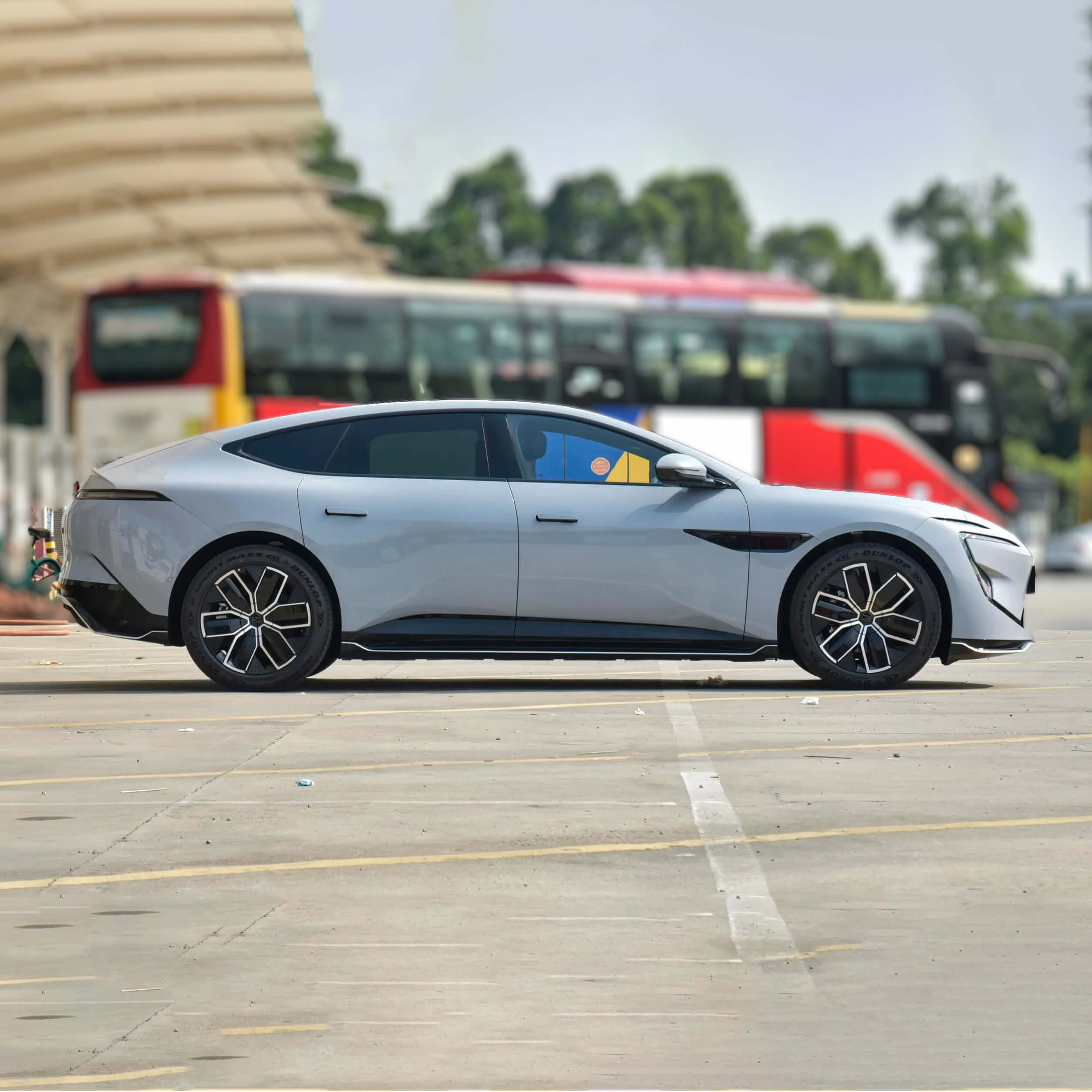

AVATR 12 Appearance Details
AVATR 12 Interior Details
AVATR 12 Parameter Configuration
| Model | Avatr 12 2024 model 700 three-laser rear-wheel drive smart version | Avatr 12 2024 model 700 three-laser rear-wheel drive luxury version | Avatr 12 2024 model 650 three-laser four-wheel drive GT version |
| Model | Avatr 12 2024 model 700 three-laser rear-wheel drive smart version | Avatr 12 2024 model 700 three-laser rear-wheel drive luxury version | Avatr 12 2024 model 650 three-laser four-wheel drive GT version |
| Level | Medium and large vehicles | Medium and large vehicles | Medium and large vehicles |
| Energy type | Pure electric | Pure electric | Pure electric |
| Time to market | 2024.06 | 2024.06 | 2024.03 |
| CLTC pure electric cruising range (km) | 700 | 700 | 700 |
| Battery fast charge time (hours) | 0.33 | 0.33 | 0.33 |
| Battery slow charge time (hours) | 11 | 11 | 11 |
| Battery fast charge capacity range (%) | 30-80 | 30-80 | 30-80 |
| Battery slow charge capacity range (%) | 0-100 | 0-100 | 0-100 |
| Maximum power (kW) | 230 | 230 | 425 |
| Maximum torque (N·m) | 370 | 370 | 650 |
| Gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan |
| Electric motor (Ps) | 313 | 313 | 578 |
| Length*width*height (mm) | 5020*1999*1460 | 5020*1999*1460 | 5020*1999*1450 |
| Official 0-100km/h acceleration (s) | 6.7 | 6.7 | 3.9 |
| Maximum speed (km/h) | 215 | 215 | 220 |
| Electric energy equivalent fuel consumption (L/100km) | 1.7 | 1.7 | 1.81 |
| Curb weight (kg) | 2205 | 2205 | 2325 |
| Maximum full load weight (kg) | 2580 | 2580 | 2700 |
| Wheelbase (mm) | 3020 | 3020 | 3020 |
| Front track (mm) | 1688 | 1688 | 1688 |
| Rear track (mm) | 1702 | 1702 | 1702 |
| Minimum ground clearance when fully loaded (mm) | 120 | 120 | 120 |
| Approach angle (°) | 15 | 15 | 13 |
| Departure angle (°) | 20 | 20 | 18 |
| Longitudinal breakover angle (°) | 11 | 11 | 9 |
| Maximum climbing grade (%) | 30 | 30 | 30 |
| Minimum turning radius (m) | 6.25 | 6.25 | 6.25 |
| Body structure | Sedan | Sedan | Sedan |
| Door opening method | Swing door | Swing door | Swing door |
| Number of doors (pieces) | 4 | 4 | 4 |
| Number of seats (pieces) | 5 | 5 | 5 |
| Front trunk volume (L) | 65 | 65 | 65 |
| Rear trunk volume (L) | 425 | 425 | 425 |
| Maximum horsepower (Ps) | 313 | 313 | 578 |
| Maximum power (kW) | 230 | 230 | 425 |
| Maximum torque (N·m) | 370 | 370 | 650 |
| Energy type | Pure electric | Pure electric | Pure electric |
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Front AC/asynchronous Rear permanent magnet/synchronous |
| Total motor power (kW) | 230 | 230 | 425 |
| Total motor horsepower (Ps) | 313 | 313 | 578 |
| Total motor torque (N·m) | 370 | 370 | 650 |
| Maximum power of front motor (kW) | —— | —— | 195 |
| Maximum torque of front motor (N·m) | —— | —— | 280 |
| Maximum power of rear motor (kW) | 230 | 230 | 230 |
| Maximum torque of rear motor (N·m) | 370 | 370 | 370 |
| Number of drive motors | Single motor | Single motor | Dual motor |
| Motor layout | rear | rear | Front + rear |
| Battery type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery cooling method | Liquid cooling | Liquid cooling | Liquid cooling |
| Battery energy (kWh) | 94.5 | 94.5 | 94.5 |
| Fast charging function | Support | Support | Support |
| Fast charging power (kW) | 240 | 240 | 240 |
| High-voltage fast charging | Support | Support | Support |
| Battery fast charging time (hours) | 0.33 | 0.33 | 0.33 |
| Battery slow charging time (hours) | 11 | 11 | 11 |
| Battery fast charging capacity range (%) | 30-80 | 30-80 | 30-80 |
| Battery slow charging capacity range (%) | 0-100 | 0-100 | 0-100 |
| Slow charging interface location | Left rear side of the vehicle | Left rear side of the vehicle | Left rear side of the vehicle |
| Fast charging interface location | Left rear side of the vehicle | Left rear side of the vehicle | Left rear side of the vehicle |
| External AC discharge power (kW) | 3.3 | 3.3 | 3.3 |
| Number of gears | 1 | 1 | 1 |
| Gearbox type | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Drive mode | Rear-mounted rear-wheel drive | Rear-mounted rear-wheel drive | Dual motor four-wheel drive |
| Four-wheel drive type | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Power-assisted type | —— | —— | Electric power steering |
| Body structure | Load-bearing type | Load-bearing type | Load-bearing type |
| Front brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Rear brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire specifications | 265/45 R20 | 265/45 R20 | 265/40 R21 |
| 265/40 R21(Optional) | |||
| Rear tire specifications | 265/45 R20 | 265/45 R20 | 265/40 R21 |
| 265/40 R21(Optional) | |||
| Driver and passenger seat safety | Main / auxiliary | Main / auxiliary | Main / auxiliary |
| Variable suspension function | —— | —— | Suspension hardness adjustment |
| Suspension height adjustment | |||
| Air suspension | —— | —— | ● |
| Appearance package | —— | Sports style(Optional 6000 yuan) | Sports style |
| Electric suction doors | —— | Entire vehicle | Entire vehicle |
| Automatic opening and closing doors | —— | —— | ● |
| Light-sensitive skylight | —— | —— | ● |
| Rear side privacy glass | —— | ● | ● |
| External rearview mirror function | Electric adjustment | Electric adjustment | —— |
| Electric folding | Electric folding | ||
| Mirror memory | Mirror memory | ||
| Heated mirrors | Heated mirrors | ||
| Automatic folding when reversing | Automatic folding when reversing | ||
| Automatic folding when locking the car | Automatic folding when locking the car | ||
| Electronic external rearview mirror function | —— | Automatic anti-glare (optional) | Automatic anti-glare |
| Electronic external rearview mirror display screen | —— | Dual 6.7-inch (optional) | Dual 6.7-inch |
| Voice recognition control system | Multimedia system Navigation Telephone Air conditioning Heated seats |
Multimedia system | Multimedia system |
| Navigation | Navigation | ||
| Telephone | Telephone | ||
| Air conditioning | Air conditioning | ||
| Heated seats | Heated seats | ||
| Ventilated seats | Ventilated seats | ||
| Massage seats | Massage seats | ||
| Seat material | imitation leather | dermis | dermis |
| Main seat adjustment method | Anteroposterior adjustment Backrest adjustment High and low adjustment (2-way) |
Anteroposterior adjustment | Anteroposterior adjustment |
| Backrest adjustment | Backrest adjustment | ||
| High and low adjustment (4-way) | High and low adjustment (4-way) | ||
| Leg rest adjustment（Optional） | Leg rest adjustment | ||
| Waist support (4 ways) | Waist support (4 ways) | ||
| Passenger seat adjustment method | Anteroposterior adjustment Backrest adjustment High and low adjustment (2-way) |
Anteroposterior adjustment | Anteroposterior adjustment |
| Backrest adjustment | Backrest adjustment | ||
| High and low adjustment (4-way) | High and low adjustment (4-way) | ||
| Leg rest adjustment（Optional） | Leg rest adjustment | ||
| Waist support (4 ways) | Waist support (4 ways) | ||
| Front seat function | heat | heat | heat |
| ventilate | ventilate | ||
| massage | massage | ||
| Headrest speaker | Headrest speaker | ||
| Electric seat memory function | Driving seat | Driving seat | Driving seat |
| Passenger seat | Passenger seat | ||
| Co-pilot rear seat adjustable button | —— | ● | ● |
| Second row seat function | —— | heat | heat |
| Number of speakers | 14 horn | 27 horn | 27 horn |
