Description

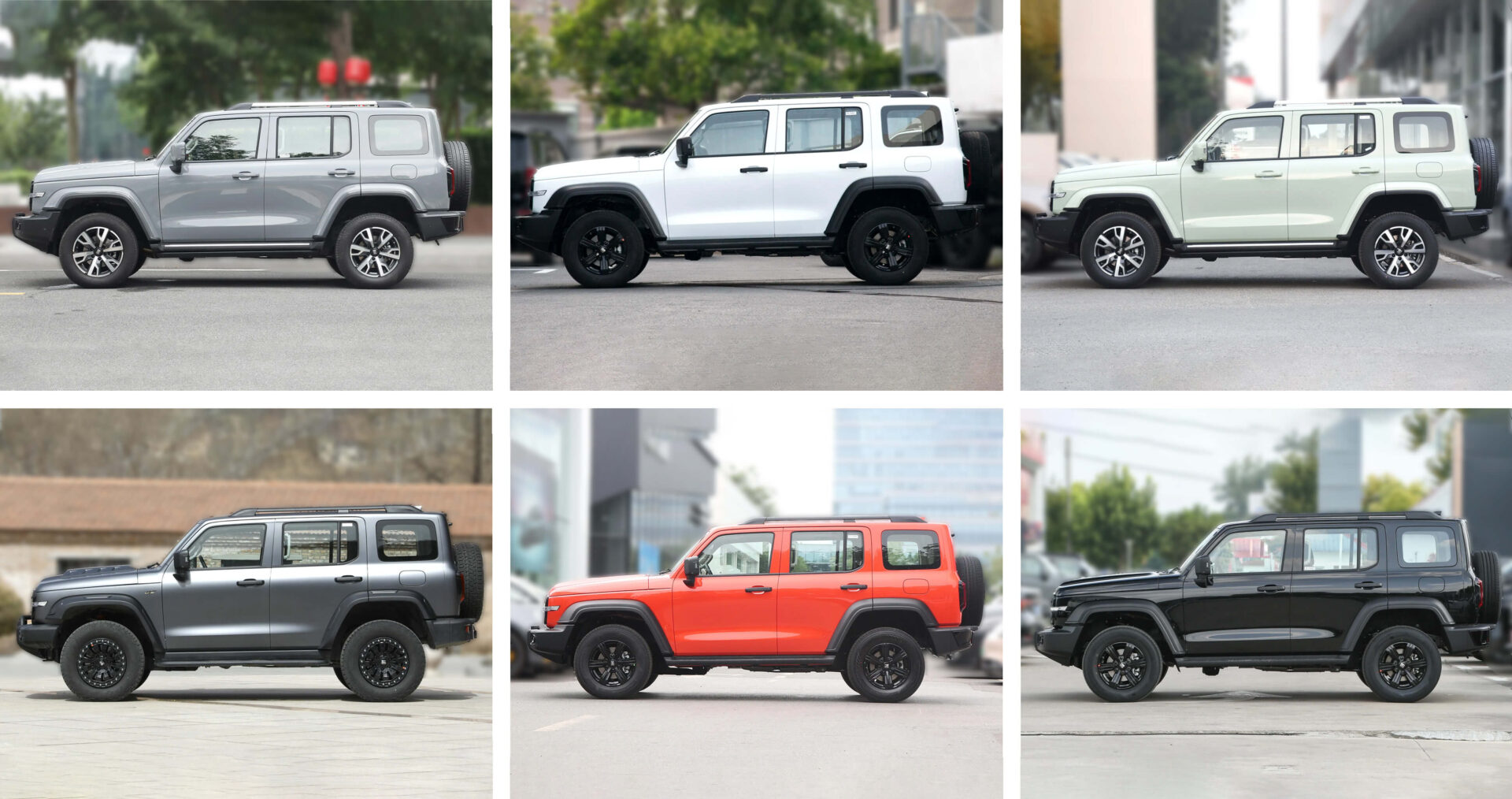

GWM Tank 300 Color

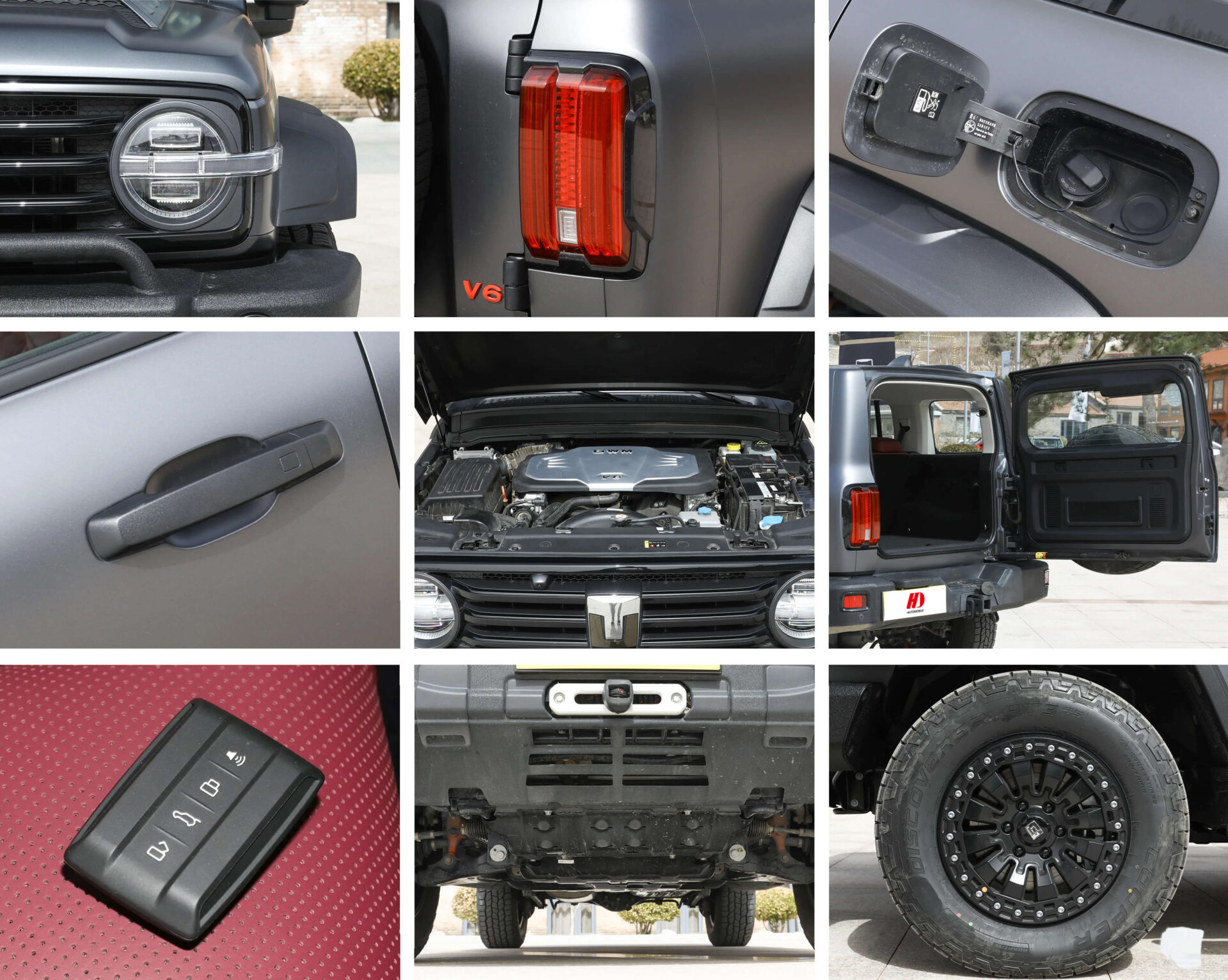

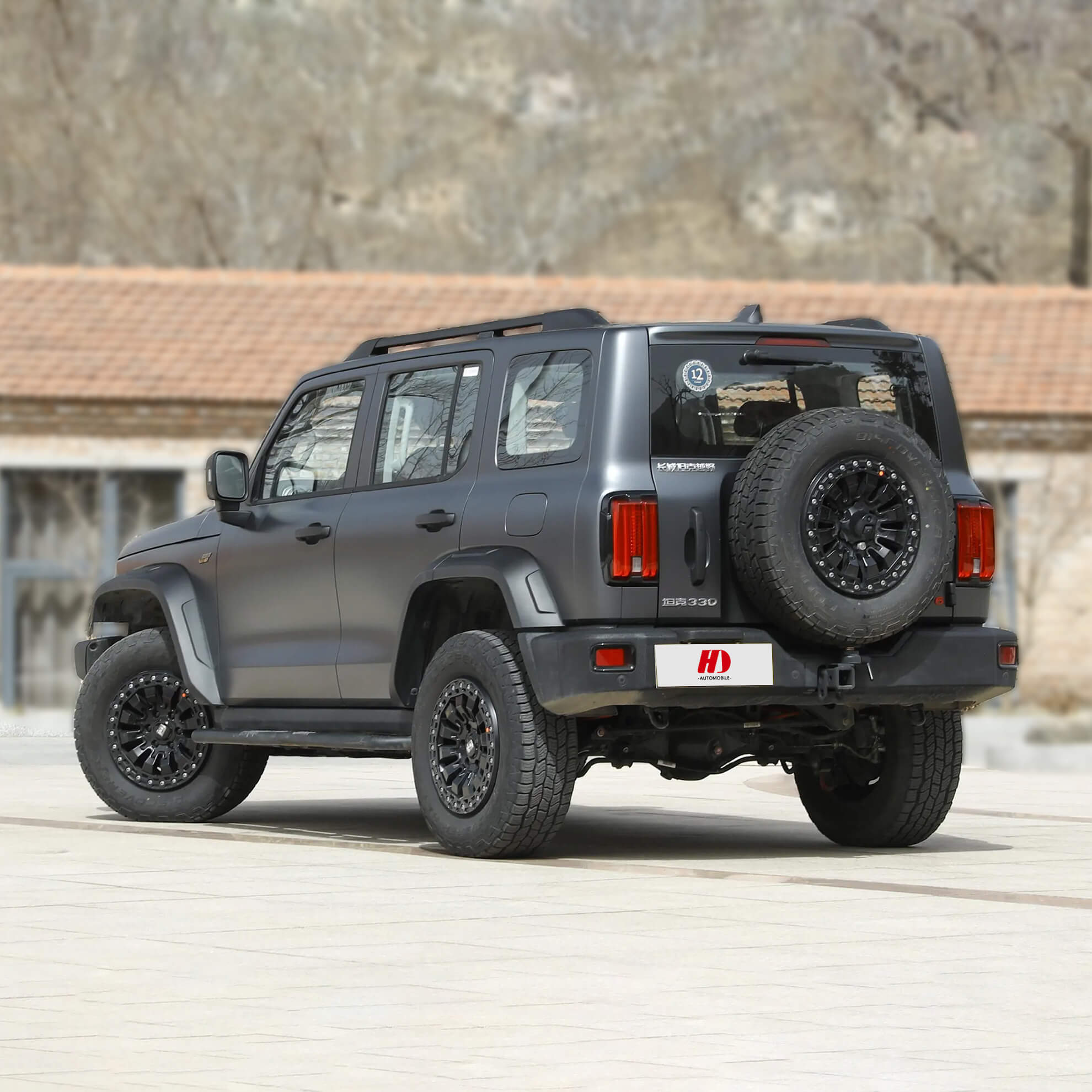

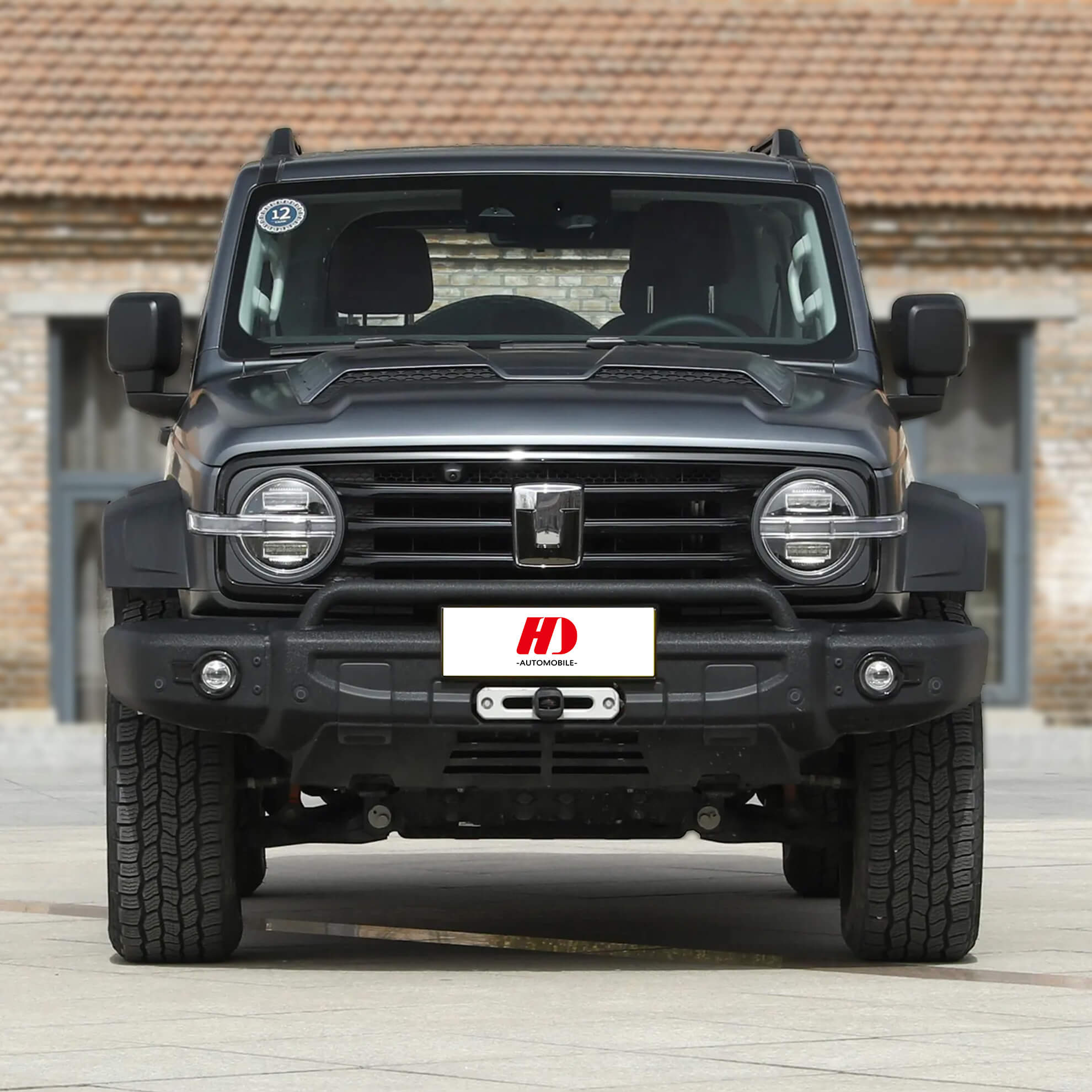

GWM Tank 300 Appearance Details

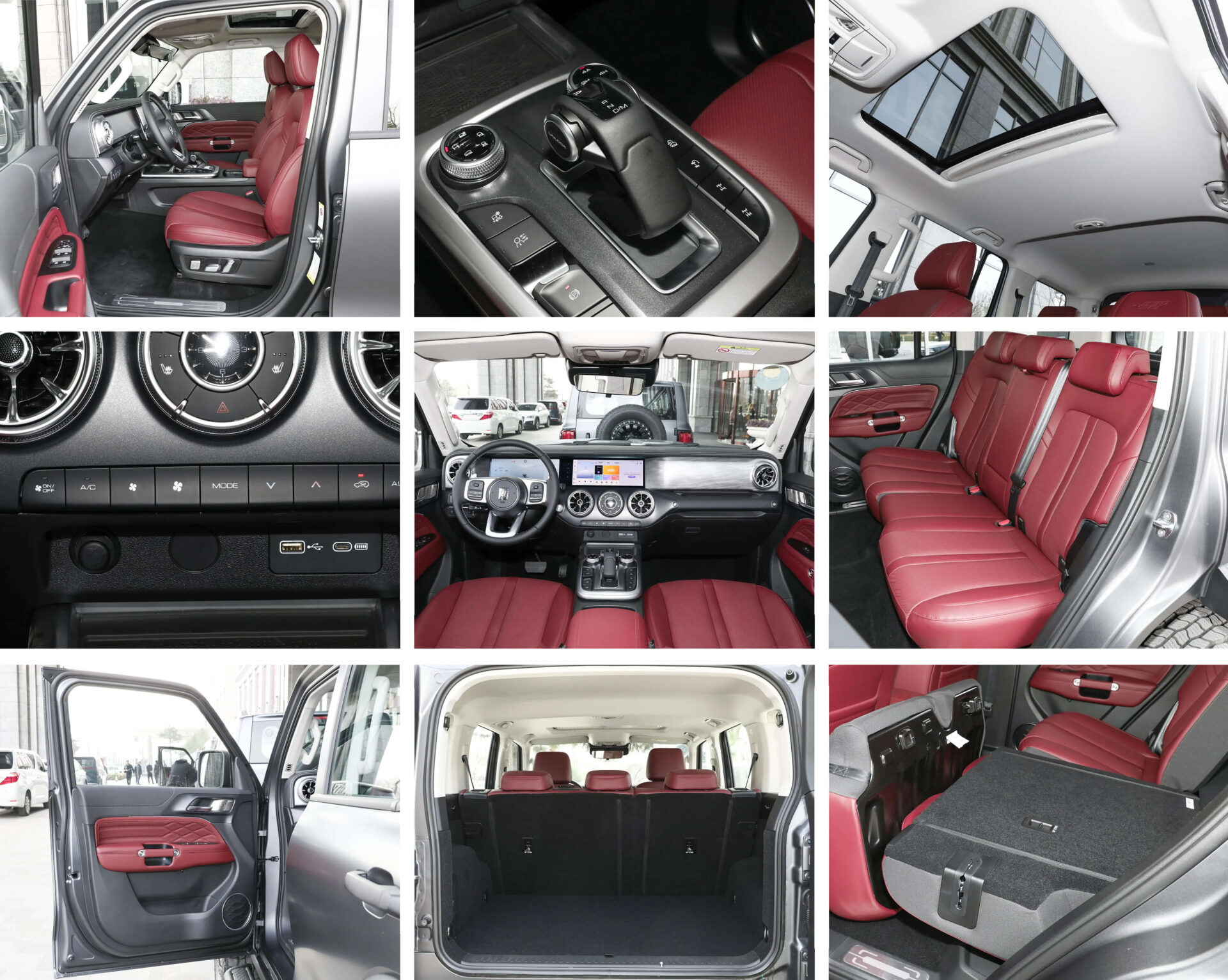

GWM Tank 300 Interior Details
GWM Tank 300 Parameter Configuration
| Model | Tank 300 2024 2.0T Challenger | Tank 300 2024 2.0T Conqueror | Tank 300 2024 2.0T Crossover | Tank 300 2024 330 3.0T V6 |
| Level | Compact SUV | Compact SUV | Compact SUV | Compact SUV |
| Energy type | Gasoline | Gasoline | Gasoline | Gasoline |
| Environmental protection standard | National VI | National VI | National VI | National VI |
| Time to market | 2023.08 | 2023.08 | 2023.08 | 2024.03 |
| Maximum power (kW) | 167 | 167 | 185 | 260 |
| Maximum torque (N·m) | 387 | 387 | 385 | 500 |
| Gearbox | 8-speed manual and automatic | 8-speed manual and automatic | 9-speed manual and automatic | 9-speed manual and automatic |
| Body structure | 5-door, 5-seater SUV | 5-door, 5-seater SUV | 5-door, 5-seater SUV | 5-door, 5-seater SUV |
| Engine | 2.0T 227 horsepower L4 | 2.0T 227 horsepower L4 | 2.0T 252 horsepower L4 | 2.0T 354 horsepower L4 |
| Length*width*height (mm) | 4760*1930*1903 | 4760*1930*1903 | 4760*1930*1903 | 4760*1970*1960 |
| Official 0-100km/h acceleration (s) | 9.5 | 9.5 | —— | 7.2 |
| Maximum speed (km/h) | 175 | 175 | 175 | 170 |
| WLTC comprehensive fuel consumption (L/100km) | 9.9 | 9.9 | 9.81 | 11.9 |
| Curb weight (kg) | 2165 | 2165 | 2200 | 2480 |
| Maximum fully loaded mass (kg) | 2585 | 2585 | 2640 | 2955 |
| Total mass of the semi-trailer (kg) | 2000 | 2000 | 2000 | 2500 |
| Wheelbase (mm) | 2750 | 2750 | 2750 | 2750 |
| Front track (mm) | 1608 | 1608 | 1608 | 1608 |
| Rear track (mm) | 1608 | 1608 | 1608 | 1626 |
| Minimum ground clearance when fully loaded (mm) | 224 | 224 | 224 | 1635 |
| Approach angle (°) | 33 | 33 | 33 | 36 |
| Departure angle (°) | 34 | 34 | 34 | 33 |
| Longitudinal passing angle (°) | 23.1 | 23.1 | 23.1 | 25 |
| Maximum wading depth (mm) | 700 | 700 | 700 | 750 |
| Body structure | SUV | SUV | SUV | SUV |
| Door opening method | Swing door | Swing door | Swing door | Swing door |
| Number of doors (pieces) | 5 | 5 | 5 | 5 |
| Number of seats (pieces) | 5 | 5 | 5 | 5 |
| Fuel tank capacity (L) | 80 | 80 | 80 | 75 |
| Engine model | E20CB | E20CB | E20NA | E30Z |
| Displacement (mL) | 1967 | 1967 | 1998 | 2993 |
| Displacement (L) | 2 | 2 | 2 | 3 |
| Intake form | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Engine layout | Longitudinal | Longitudinal | Longitudinal | Longitudinal |
| Cylinder arrangement | L | L | L | V |
| Number of cylinders (pieces) | 4 | 4 | 4 | 6 |
| Number of valves per cylinder (pieces) | 4 | 4 | 4 | 4 |
| Valve mechanism | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 227 | 227 | 252 | 354 |
| Maximum power (kW) | 167 | 167 | 185 | 260 |
| Maximum power speed (rpm) | 5500 | 5500 | 5500-6000 | 6000 |
| Maximum torque (N·m) | 387 | 387 | 385 | 500 |
| Maximum torque speed (rpm) | 1800-3600 | 1800-3600 | 1700-4000 | 1500-4500 |
| Maximum net power (kW) | 162 | 162 | 180 | 260 |
| Energy type | Gasoline | Gasoline | Gasoline + 48V mild hybrid system | Gasoline + 48V mild hybrid system |
| Fuel grade | No. 92 | No. 92 | No. 92 | No. 95 |
| Fuel supply method | Direct injection | Direct injection | Direct injection | Direct injection |
| Cylinder head material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Cylinder block material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Environmental protection standard | National VI | National VI | National VI | National VI |
| Transmission abbreviation | 8-speed manual and automatic | 8-speed manual and automatic | 9-speed manual and automatic | 9-speed manual and automatic |
| Number of gears | 8 | 8 | 9 | 9 |
| Transmission type | Automatic transmission (AT) | Automatic transmission (AT) | Automatic transmission (AT) | Automatic transmission (AT) |
| Drive mode | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive |
| Four-wheel drive type | Part-time four-wheel drive | Part-time four-wheel drive | Timely four-wheel drive | Timely four-wheel drive |
| Central differential structure | —— | —— | Multi-plate clutch | Multi-plate clutch |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Multi-link non-independent suspension! | Multi-link non-independent suspension! | Multi-link non-independent suspension! | Multi-link non-independent suspension! |
| Power assist type | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Front brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Rear brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire specifications | 265/65 R17 | 265/65 R17 | 265/60 R18 | 265/70 R18 |
| Rear tire specifications | 265/65 R17 | 265/65 R17 | 265/60 R18 | 265/70 R18 |
| Spare tire specifications | Full size | Full size | Full size | Full size |
| Spare tire placement | Pigtail type | Pigtail type | Pigtail type | Pigtail type |
| Driver/passenger airbags | Main/auxiliary | Main/auxiliary | Main/auxiliary | Main/auxiliary |
| Front/rear side airbags | Front/rear none | Front/rear none | Front/rear none | Front/rear none |
| Front/rear head airbags (curtain airbags) | —— | Front/rear | Front/rear | Front/rear |
| ABS anti-lock brakes | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC, etc.) | ● | ● | ● | ● |
| Brake assist (EBA/BAS/BA cornering) | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC, etc.) | ● | ● | ● | ● |
| Active braking/active safety system | —— | —— | ● | —— |
| DOW door opening warning | —— | —— | ● | —— |
| Forward collision warning | —— | —— | ● | —— |
| Rear collision warning | —— | —— | ● | —— |
| Driving mode switching | Standard/Comfort Off-road Snow |
Standard/Comfort Off-road Snow |
Sport | Standard/Comfort Off-road Snow |
| Economy | ||||
| Standard/Comfort | ||||
| Off-road | ||||
| Snow | ||||
| Variable suspension function | —— | —— | —— | Suspension hardness adjustment |
| Limited slip differential/differential lock | Front axle differential lock (optional 6,000 yuan) | Front axle differential lock | —— | Front axle differential lock |
| Rear axle differential lock | Rear axle differential lock | —— | Rear axle differential lock | |
| Winch | Front (optional 5,500 yuan) | Front (optional 5,500 yuan) | —— | Front |
| Number of ultrasonic radars | 8 | 8 | 12 | 8 |
| Active noise reduction | —— | —— | ● | —— |
| Heated steering wheel | —— | ● | ● | ● |
| Rearview mirror function | Manual anti-glare | Manual anti-glare | Automatic anti-glare | Manual anti-glare |
| Streaming media rearview mirror (optional 2,000 yuan) | ||||
| 220V/230V power supply | —— | ● | —— | ● |
| Seat material | imitation leather | Leather | Leather | Leather |
| Main seat adjustment method | Front and rear adjustment | Front and rear adjustment | Front and rear adjustment | Front and rear adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| Height adjustment (2 directions) | Height adjustment (4 directions) | Height adjustment (4 directions) | Height adjustment (4 directions) | |
| Lumbar support (4 directions) | Lumbar support (4 directions) | Lumbar support (4 directions) | Lumbar support (4 directions) | |
| Front seat function | Heating Massage (driver’s seat only) |
Heating | Heating | Heating |
| Ventilation | Ventilation | Ventilation | ||
| Massage (driver’s seat only) | Massage (driver’s seat only) | Massage (driver’s seat only) | ||
| Interior ambient lighting | 7 colors | 64 colors | 64 colors | 64 colors |
