Description
IM L6 Color

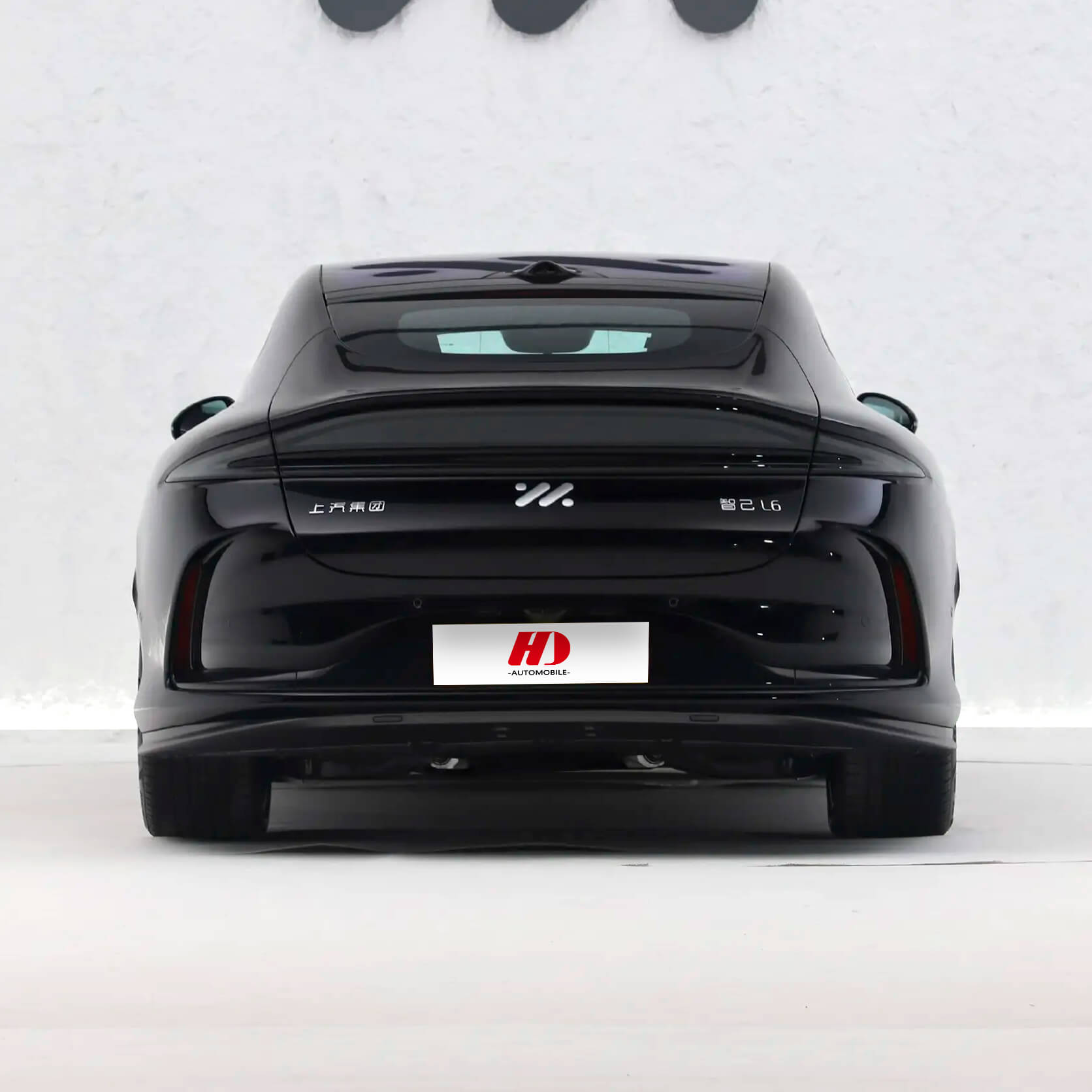

IM L6 Appearance Details
IM L6 Interior Details
IM L6 Parameter Configuration
| Model | IM L6 2024 Max Standard Edition | IM L6 2024 Max Long-range European Edition | IM L6 2024 Max Ultra-long-range Edition | IM L6 2024 Max Super Performance Edition |
| Level | Medium and large cars | Medium and large cars | Medium and large cars | Medium and large cars |
| Energy type | Pure electric | Pure electric | Pure electric | Pure electric |
| Time to market | 2024.05 | 2024.05 | 2024.05 | 2024.05 |
| CLTC pure electric cruising range (km) | 650 | 710 | 850 | 780 |
| Battery fast charging time (hours) | 0.425 | 0.28 | 0.28 | 0.28 |
| Battery fast charging capacity range (%) | 10-80 | 10-80 | 10-80 | 10-80 |
| Maximum power (kW) | 216 | 248 | 300 | 579 |
| Maximum torque (N·m) | 450 | 500 | 500 | 800 |
| Body structure | 5-door 5-seat hatchback | 5-door 5-seat hatchback | 5-door 5-seat hatchback | 5-door 5-seat hatchback |
| Electric motor (Ps) | 294 | 4.6 | 4.6 | 2.74 |
| Length*width*height (mm) | 4931*1960*1474 | 4931*1960*1474 | 4931*1960*1474 | 4931*1960*1474 |
| Official 0-100km/h acceleration (s) | 5.6 | 5.6 | 5.6 | 5.6 |
| Maximum speed (km/h) | 200 | 220 | 222 | 268 |
| Electric energy equivalent fuel consumption (L/100km) | 1.53 | 1.47 | 1.45 | 1.56 |
| Curb weight (kg) | 2130 | 2090 | 2160 | 2250 |
| Maximum fully loaded weight (kg) | 2580 | 2540 | 2610 | 2700 |
| Wheelbase (mm) | 2950 | 2950 | 2950 | 2950 |
| Front track (mm) | 1665 | 1665 | 1665 | 1665 |
| Rear track (mm) | 1672 | 1672 | 1672 | 1672 |
| Approach angle (°) | 14 | 14 | 14 | 14 |
| Departure angle (°) | 18 | 18 | 18 | 18 |
| Minimum turning radius (m) | 4.99 | 4.99 | 4.99 | 4.99 |
| Body structure | Hatchback | Hatchback | Hatchback | Hatchback |
| Door opening method | Sliding door | Sliding door | Sliding door | Sliding door |
| Number of doors (pieces) | 5 | 5 | 5 | 5 |
| Number of seats (pieces) | 5 | 5 | 5 | 5 |
| Trunk volume (L) | 457-1290 | 457-1290 | 457-1290 | 457-1290 |
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 216 | 248 | 300 | 579 |
| Total motor horsepower (Ps) | 294 | 337 | 408 | 787 |
| Total motor torque (N·m) | 450 | 500 | 500 | 800 |
| Maximum power of front motor (kW) | —— | —— | —— | 200 |
| Maximum power of rear motor (kW) | 216 | 248 | 300 | 379 |
| Maximum torque of rear motor (N·m) | 450 | 500 | 500 | —— |
| Number of drive motors | Dual motors | Dual motors | Dual motors | Dual motors |
| Motor layout | rear | rear | rear | Front + rear |
| Battery type | Lithium iron sulfate battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery cooling method | Liquid cooling | Liquid cooling | Liquid cooling | Liquid cooling |
| Battery energy (kWh) | 75 | 83 | 100 | 100 |
| Battery energy density (Wh/kg) | 180 | 180 | 180 | 180 |
| Power consumption per 100 kilometers (kwh/100km) | 13.5 | 13 | 12.8 | 13.8 |
| Fast charging function | Support | Support | Support | Support |
| Battery fast charge capacity range (%) | 10-80 | 10-80 | 10-80 | 10-80 |
| Slow charge port location | Left rear side of the car | Left rear side of the car | Left rear side of the car | Left rear side of the car |
| Fast charge port location | Left rear side of the car | Left rear side of the car | Left rear side of the car | Left rear side of the car |
| External AC discharge power (kW) | 6 | 6.6 | 6.6 | 6.6 |
| Transmission abbreviation | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox |
| Number of gears | 1 | 1 | 1 | 1 |
| Transmission type | Rear-mounted rear-wheel drive | Rear-mounted rear-wheel drive | Rear-mounted rear-wheel drive | Fixed gear ratio gearbox |
| Drive mode | —— | —— | —— | Dual motor four-wheel drive |
| Four-wheel drive type | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Power-assisted type | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Body structure | Load-bearing type | Load-bearing type | Load-bearing type | Load-bearing type |
| Front brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Rear brake type | Ventilated disc type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire specifications | 245/45 R19 | 245/45 R19 | 245/45 R19 | 245/45 R19 |
| 245/40 R20 (optional 8,000 yuan) | 245/40 R20 (optional 8,000 yuan) | 245/40 R20 (optional 8,000 yuan) | 245/40 R20 (optional 8,000 yuan) | |
| Rear tire specifications | 275/40 R19 | 275/40 R19 | 275/40 R19 | 275/40 R19 |
| 275/35 R20 (optional 8,000 yuan) | 275/35 R20 (optional 8,000 yuan) | 275/35 R20 (optional 8,000 yuan) | 275/35 R20 (optional 8,000 yuan) | |
| Driver/passenger airbags | Master/auxiliary | Master/auxiliary | Master/auxiliary | Master/auxiliary |
| Front/rear side airbags | Front/rear none | Front/rear none | Front/rear none | Front/rear none |
| Front/rear head airbags (curtain airbags) | Front/rear | Front/rear | Front/rear | Front/rear |
| Passive pedestrian protection | ● | ● | ● | ● |
| ABS anti-lock braking system | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC, etc.) | ● | ● | ● | ● |
| Brake assist (EBA/BAS/BA, etc.) | ● | ● | ● | ● |
| Traction control (ASR/TCS/TRC, etc.) | ● | ● | ● | ● |
| Variable suspension function | —— | —— | Suspension hardness adjustment (optional 10,000 yuan) | Suspension hardness adjustment (optional 10,000 yuan) |
| Suspension height adjustment (optional) | Suspension height adjustment (optional) | |||
| Air suspension | —— | —— | (optional 12,000 yuan) | (optional 12,000 yuan) |
| Scene lighting | ● | —— | ● | ● |
| Multi-layer soundproof glass | Whole vehicle（Optional 2000yuan） | Whole vehicle | Whole vehicle | Whole vehicle |
| Size of passenger entertainment screen | 15.5 inches (optional 6,000 yuan) | 15.5 inches (optional 6,000 yuan) | 15.5 inches (optional 6,000 yuan) | 15.5 inches |
| Type of passenger screen | OLED (optional) | OLED (optional) | OLED (optional) | OLED |
| Resolution of passenger screen | 2488×720 (optional) | 2488×720 (optional) | 2488×720 (optional) | 2488×720 |
| Active noise reduction | (optional 2,000 yuan) | ● | ● | ● |
| Seat material | Imitation leather | Imitation leather | Genuine leather | Genuine leather |
| Genuine leather (8,000 yuan) | Genuine leather (8,000 yuan) | |||
| Number of speakers | 21 speakers (6,000 yuan) | 21 speakers | 21 speakers | 21 speakers |
